BMC-r

€599.00

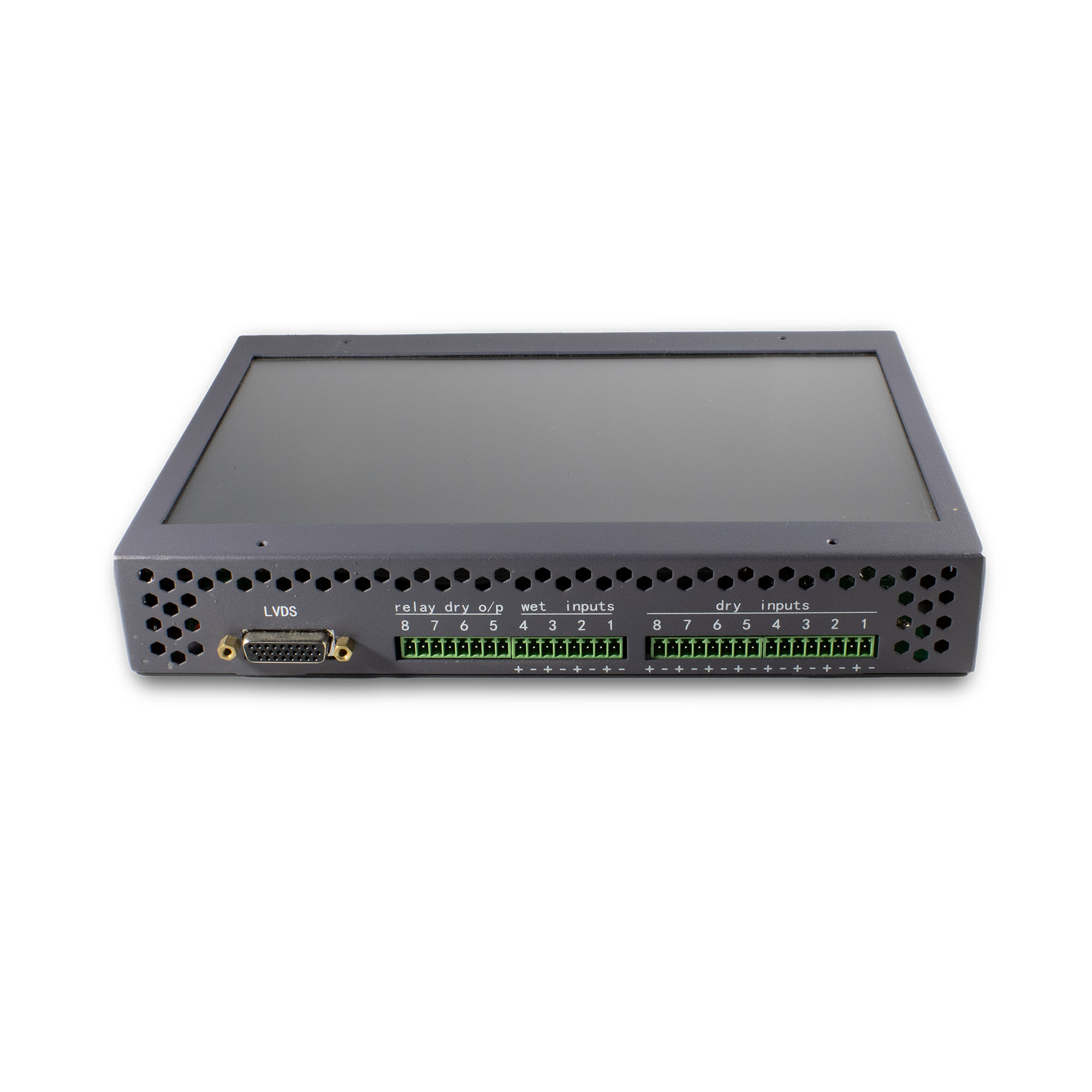

LCD controller, 10-inch resistive touch screen, 4 alarm dry contacts (voltage, temperature, resistance and common alarms), 4 extra user defined dry contacts, 8 dry contact inputs and 4 0-3V wet inputs, buzzler audible alarm.

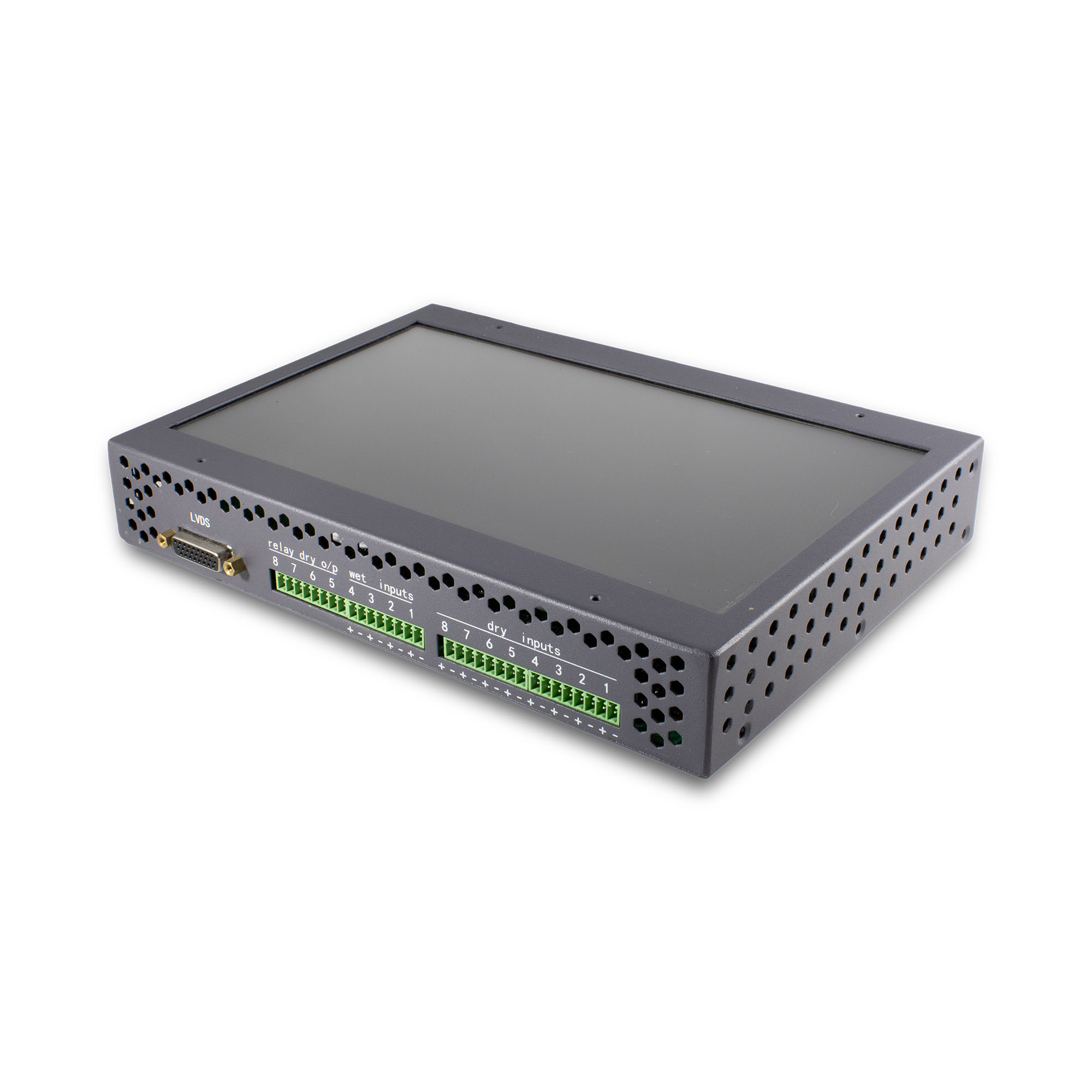

BMC System Controller
Item	Specifications
CPU	Cortex A8
LCD	10.2-inch resistive color touch screen
Battery sensors supported	Maximum 180
String module supported	Maximum 8
Power supply	12VDC/2.5A external supply
Communication	2.4GHz dual-band/0dBm
Data scanning speed uplink	0.3s per sensor
Audio output	buzzler for audiable alarms
Inputs:	Ser
serieal port 1	RS-232 for transceiver connectiion with proprietory or modbus protocol
serial port 2	RS-232 for transceiver connectiion with proprietory or modbus protocol
serial port 3	RS-485 for remote monitoring with modbus protocol
TCP/IP	single 10/100MHz port for remote monitoring
serial port 4	RS-485 for remote monitoring with modbus protocol
relay dry contacts	4 relay outputs for voltage, temperature, resistance and common alarms(including communications
special optional feature supported:
SNMP	V1.0 and V2.0 supported
SMS	alarm notification via SMS (SMS modem required)
email	POP3 and SMTP protocol supported with multiple email recievers
remote desktop	VNC for PC and mobile phone supported
size	24.5cm X 17.5cm X 4.0cm
Operation conditions	0-80℃, ≤95% non-condensing
